Dragon Burner Configurator
Customize your 3D printer toolhead components
Configuration
Parts Overview
No parts to display
Select options from the dropdowns on the left to configure and preview your Dragon Burner components.
Printing Instructions
• Use the Voron defaults and print in ABS/ASA or better.
• Print with 3-4 perimeters, 20% infill, 0.2mm layer height for most parts.
• Use 0.1-0.15mm layer height for the cowl and bowden mount for best results.
The parts are orientated correctly in the STLs.
• Print the appropriate cowl for your sensor probe if you use one.
• Print the appropriate hotend mount and extruder mount.
• Print a PCB mount if needed.
• Print a v2.4, Trident, Switchwire, Legacy mount if needed.
• For more details, visit the Dragon Burner GitHub repository.
Configuration Summary
Download STLs
Get all 0 parts for your configuration
Printed Parts & Assembly Guides
Additional Information

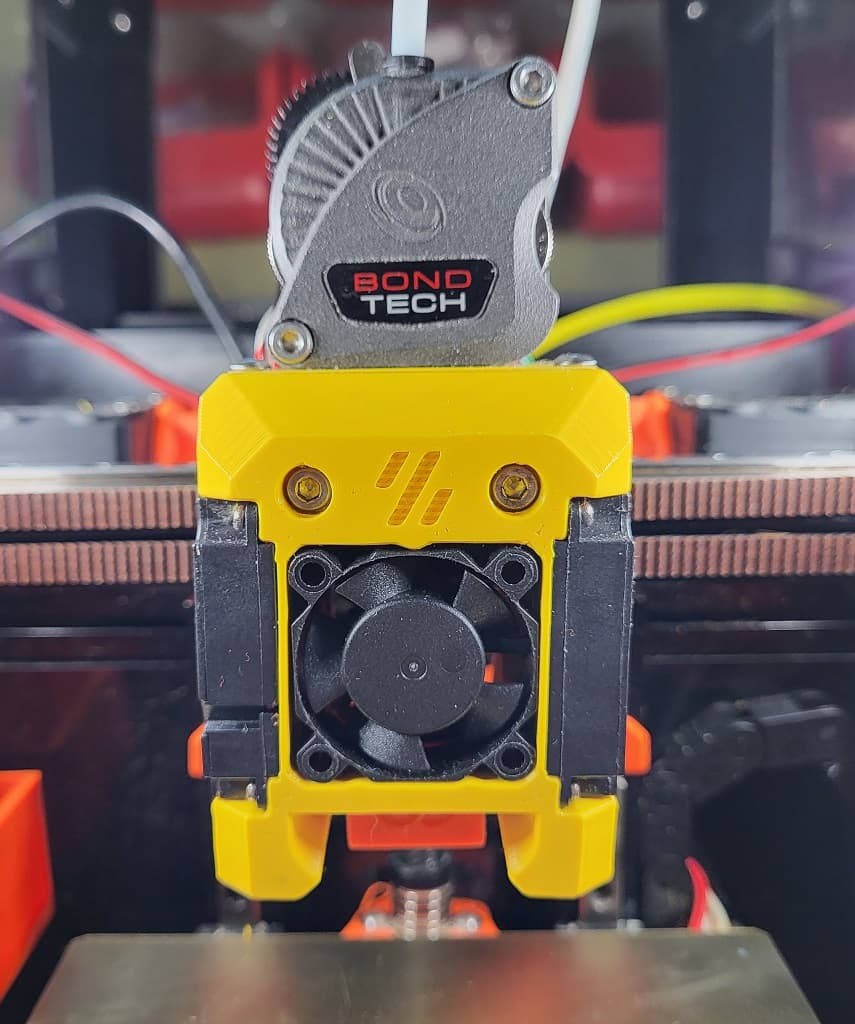

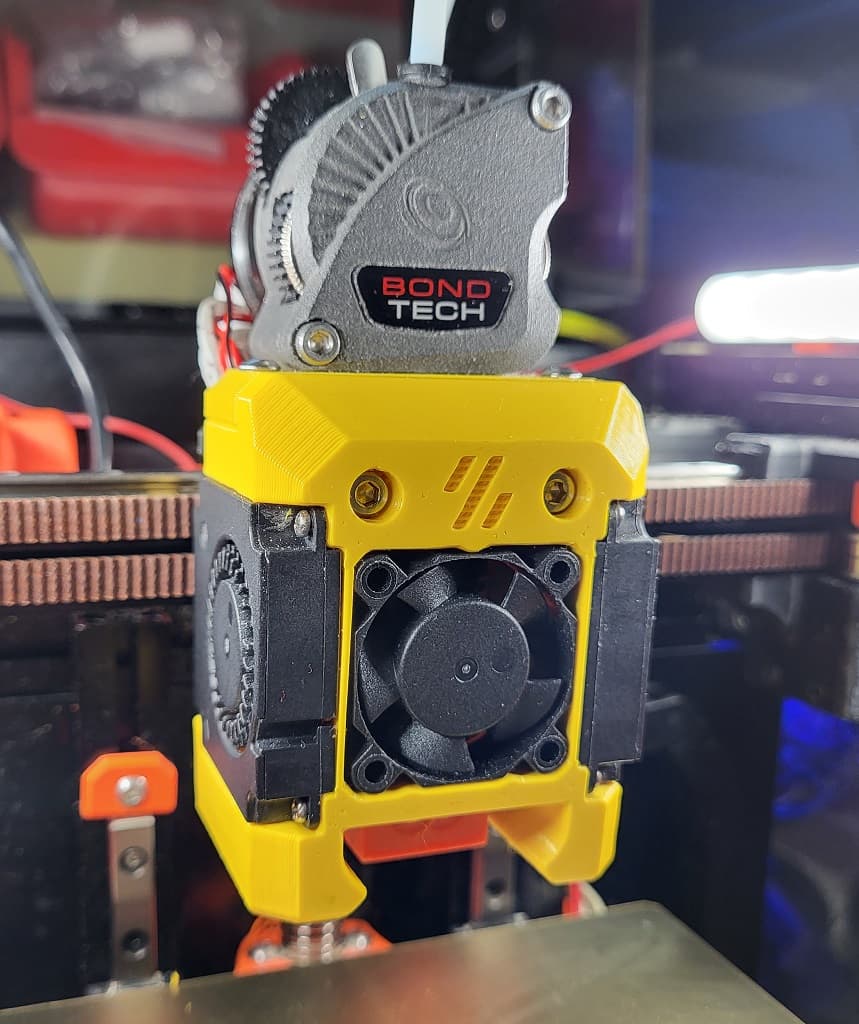

Note: This is a toolhead for the v0.2 Voron printer. It will also work on various Printers for Ants models.
Online STL Configurator:
BOM: Includes M3 screws, brass heat inserts, fans (2x 4010 blowers, 1x 3010 axial), optional LEDs, nylon zip ties, and hotend-specific components.

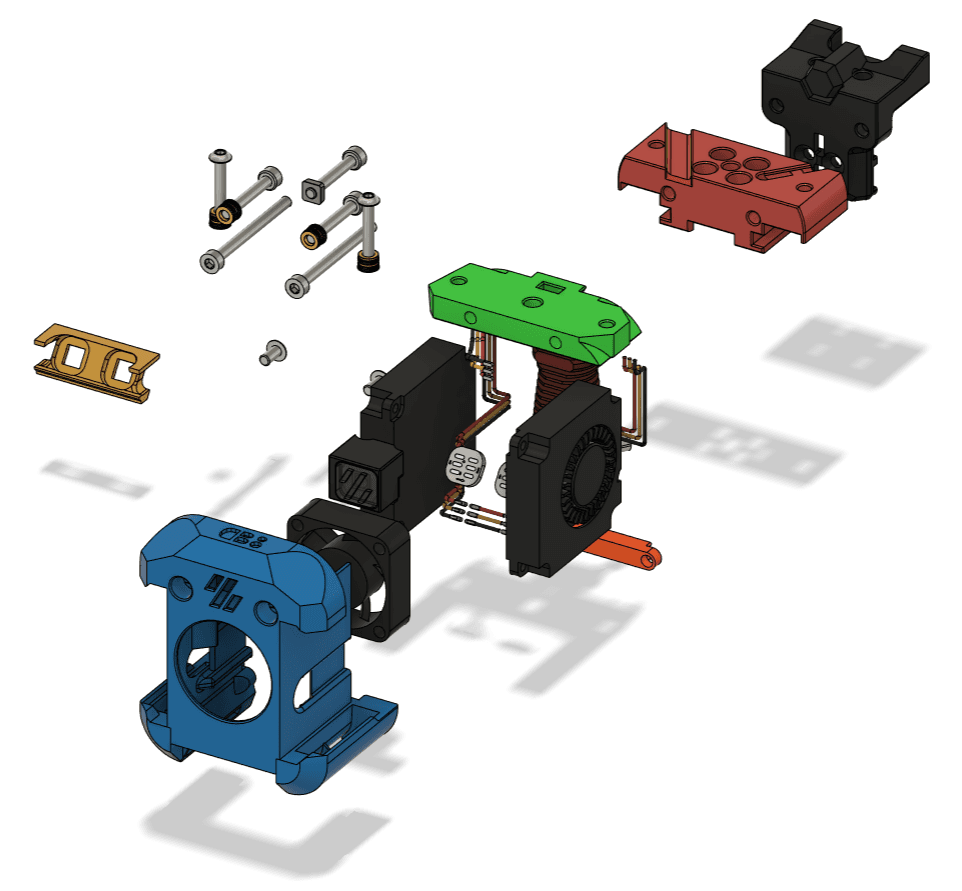

Assembly: See the GitHub repository for detailed assembly instructions with diagrams.
For full documentation, BOM, and community reviews, visit the Dragon Burner GitHub page.
